Dolomite
Anterior Cervical Stabilization System
The Dolomite Anterior Cervical Stabilization System is a comprehensive system that provides a complete range of anatomic spacers and fixation options for rigid anterior cervical stabilization. The system’s intuitive design offers the versatility to accommodate a wide array of anatomical challenges to ensure an efficient, streamlined procedural sequence.
-
-
Implants Overview
-
-
-
All Dolomite Anterior Cervical Interbody Spacers are:
- Available in either Acid-Etched Ti or HA PEEK
- Three different axial footprint options to accommodate varied patient anatomy
- Large central aperture to pack bone graft to provide a greater opportunity for fusion
- Tapered posterior edge allows for self-distraction of the intervertebral space during insertion, as well as conservation of critical structural anatomy
-
All Dolomite Anterior Cervical Interbody Spacers are:
- Available in either Acid-Etched Ti or HA PEEK
- Three different axial footprint options to accommodate varied patient anatomy
- Large central aperture to pack bone graft to provide a greater opportunity for fusion
- Tapered posterior edge allows for self-distraction of the intervertebral space during insertion, as well as conservation of critical structural anatomy
-
-
Implant Specifications
- Footprint: 14x12, 16x14, or 18x15mm
- Heights: 5-11mm in 1 mm increments
- Lordosis: 7° and 13°
-
Implant Specifications
- Footprint: 14x12, 16x14, or 18x15mm
- Heights: 5-11mm in 1 mm increments
- Lordosis: 7° and 13°
Surface Options
-
-
Acid-Etched Ti Overview
- Acid-etched endplates to resist migration postoperatively
- Acid-etched surface enhances and increases the efficiency of bone growth
-
Acid-Etched Ti Overview
- Acid-etched endplates to resist migration postoperatively
- Acid-etched surface enhances and increases the efficiency of bone growth
-
-
HA PEEK Overview
- HA is fully integrated, not coated, making it available on all surfaces of the spacer to provide an osteoconductive surface for bone ingrowth
- Unidirectional serrated teeth to resist migration postoperatively
- Radiographic markers provide fluoroscopic visualization of the exact orientation of the spacer during implantation
-
HA PEEK Overview
- HA is fully integrated, not coated, making it available on all surfaces of the spacer to provide an osteoconductive surface for bone ingrowth
- Unidirectional serrated teeth to resist migration postoperatively
- Radiographic markers provide fluoroscopic visualization of the exact orientation of the spacer during implantation
Plates, Screws, and Nails
-
-

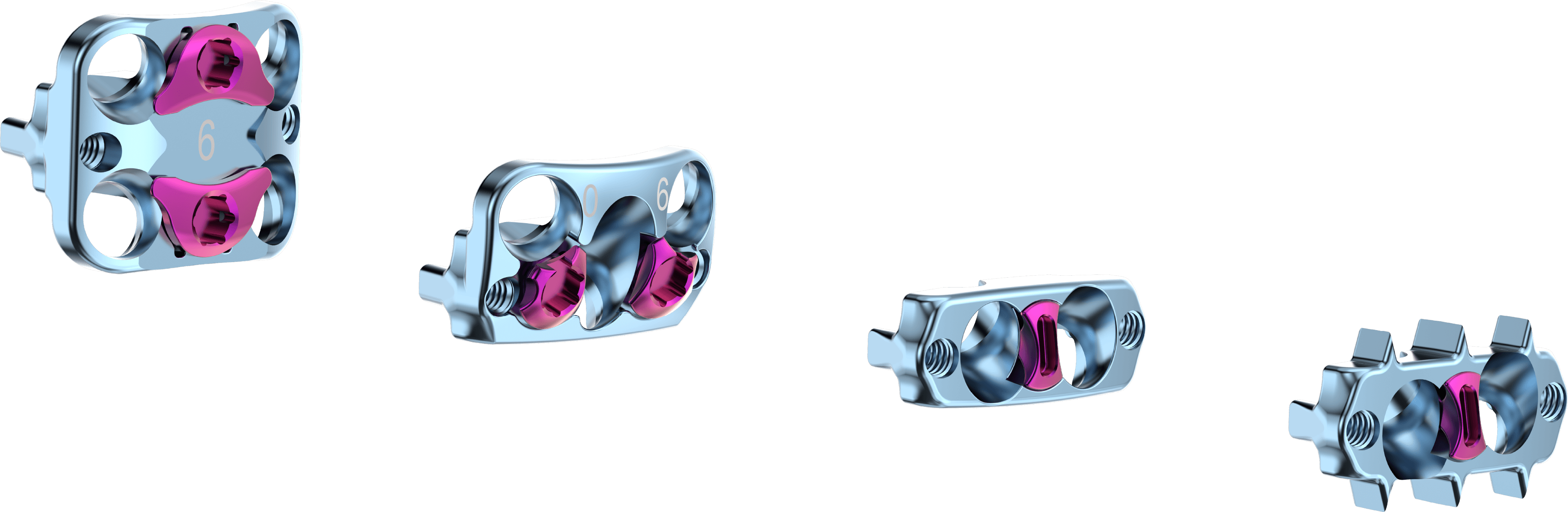

Plates
Dolomite Cervical Plates Are:
- Zero-Profile Plate, Spiked Zero-Profile Plate, Half Plate, Full Plate
- Single step attachment mechanism for efficient interoperative spacer/plate assembly
- Able to be implanted in conjunction with the plate for increased efficiency
- Spiked Zero-Profile Plates have 2mm spikes on superior & inferior edges to provide stabilization during freehand fixation technique
- Low profile design for half and full plates
- 2.3mm thickness for half and full plates
- Reliable and robust nail/screw locking screw mechanism with tactile and visual confirmation
-
Plates
Dolomite Cervical Plates Are:
- Zero-Profile Plate, Spiked Zero-Profile Plate, Half Plate, Full Plate
- Single step attachment mechanism for efficient interoperative spacer/plate assembly
- Able to be implanted in conjunction with the plate for increased efficiency
- Spiked Zero-Profile Plates have 2mm spikes on superior & inferior edges to provide stabilization during freehand fixation technique
- Low profile design for half and full plates
- 2.3mm thickness for half and full plates
- Reliable and robust nail/screw locking screw mechanism with tactile and visual confirmation
-
-
Screws
- Variable
- Self-Drilling and Self-Tapping
- Lengths: 10-20mm in 2mm increments
- Diameters: 3.5 or 4.0mm
-
Screws
- Variable
- Self-Drilling and Self-Tapping
- Lengths: 10-20mm in 2mm increments
- Diameters: 3.5 or 4.0mm
-
-
Nails
- Lengths: 10-20mm in 2mm increments
- Diameter: 3.5mm
-
Nails
- Lengths: 10-20mm in 2mm increments
- Diameter: 3.5mm
Instrumentation Overview
-
-
-

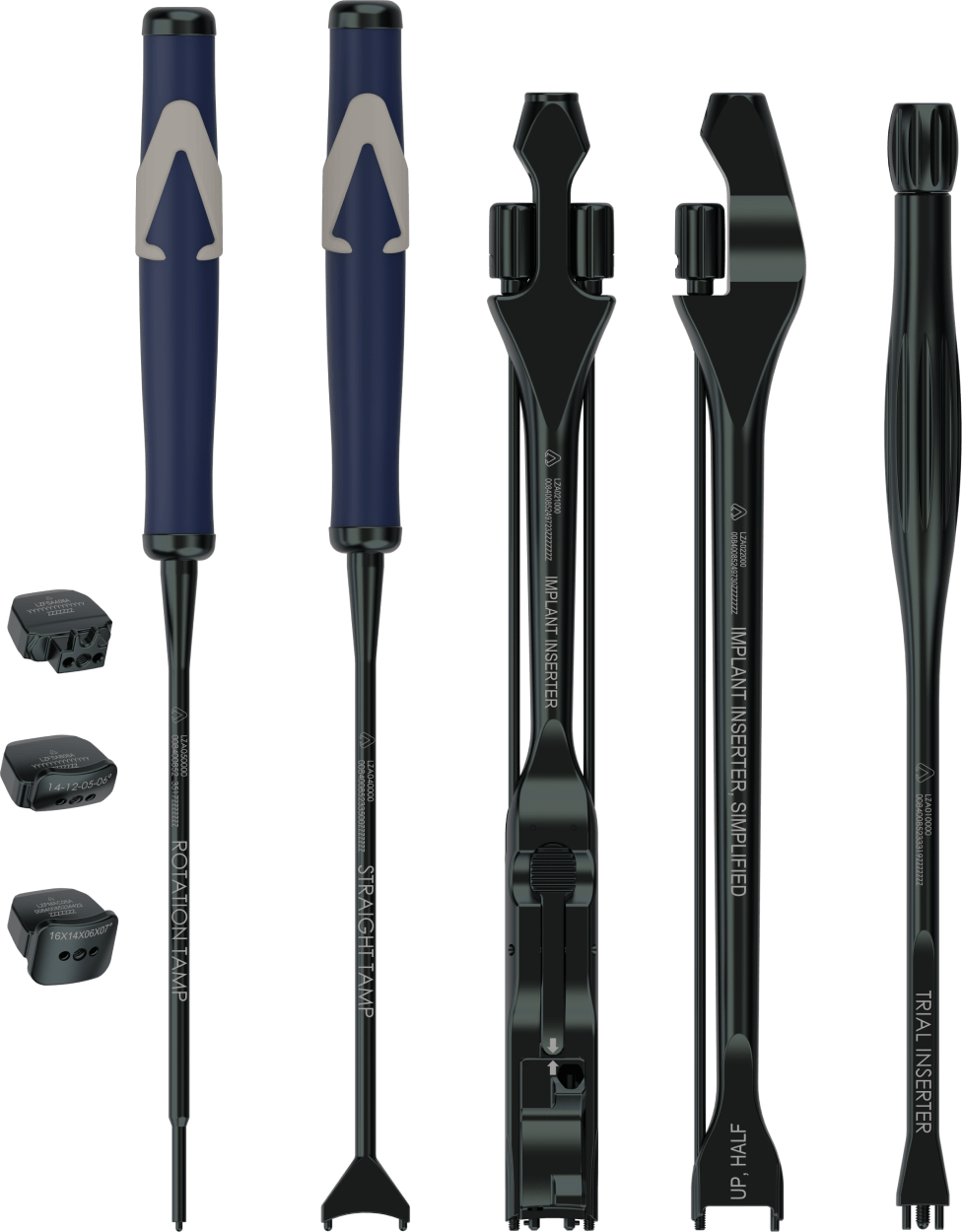

Plate and Spacer Insertion
- Streamlined, efficient threaded interface between the inserter and implant for a controlled delivery of the plate and spacer
- The All-In-One Guides allow for a low-profile and efficient method for the delivery of the preferred fixation option of screws or nails
-
Plate and Spacer Insertion
- Streamlined, efficient threaded interface between the inserter and implant for a controlled delivery of the plate and spacer
- The All-In-One Guides allow for a low-profile and efficient method for the delivery of the preferred fixation option of screws or nails
-
-
Fixation Instruments
- Protective matte finish to reduce reflective glare when working within the surgical site
- Comprehensive offering of straight and angled instruments to accommodate a wide array of anatomical challenges
- Robust screw-to-screwdriver interface
-
Fixation Instruments
- Protective matte finish to reduce reflective glare when working within the surgical site
- Comprehensive offering of straight and angled instruments to accommodate a wide array of anatomical challenges
- Robust screw-to-screwdriver interface
